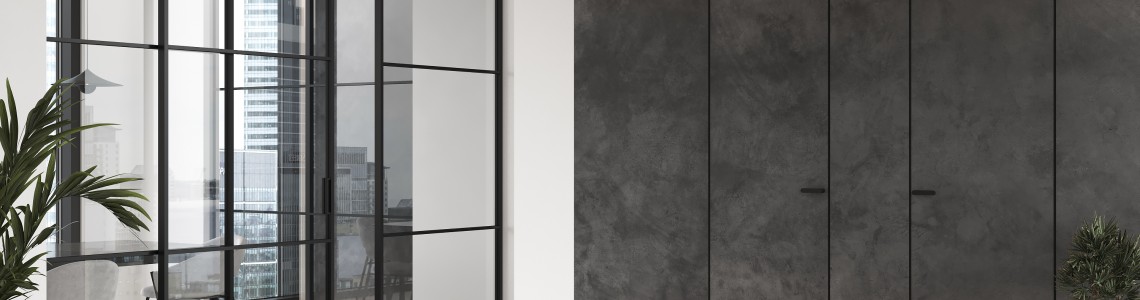

EGD-SLIM30 Aluminium Glass Partition and Door System

EGD-SLIM30 is a modern aluminium and glass partition and door system designed for contemporary interiors.

The structure is made of lightweight aluminium profiles and tempered glass, ensuring durability and structural stability regardless of temperature or humidity changes.

The system is widely used in industrial and French-style interiors, where openness, light and elegant architecture are essential.

Technical Parameters

• Aluminium profiles thickness: 42 mm, with an ultra-slim 30 mm visible profile.

• Profiles are powder-coated according to the RAL colour palette. Custom colours are also available to perfectly match interior design elements.

• Glass: 8 mm tempered or laminated glass. Available options include clear, tinted, mirrored or decorative patterned glass.

• Glass can also be enamelled (painted in any colour) or laminated from different glass types.

• The system can include decorative divisions:

  • 30 mm structural divisions

  • 19 mm decorative aluminium divisions

These allow different patterns, shapes and design combinations.

System Options

The EGD-SLIM30 aluminium glass partition system can be installed:

• with integrated doors within the partition

• or as standalone doors installed in an opening

Available door types:

• hinged doors (single or double leaf)

• sliding doors

• pivot doors

Glass partitions can be connected:

• in a straight line

• at an angle

They can also be installed with doors or transom panels.

Maximum Dimensions

• Maximum height of a single glass panel: 3200 mm

• Maximum width of a single glass panel: 1250 mm

* If the height is smaller, the maximum width can be larger.
